LW-PLAPrimary lightweight airframe
Recommended starting material for shells and wing sections after expansion calibration.
AIRCRAFT 02 · CONFIGURED TO ORDER

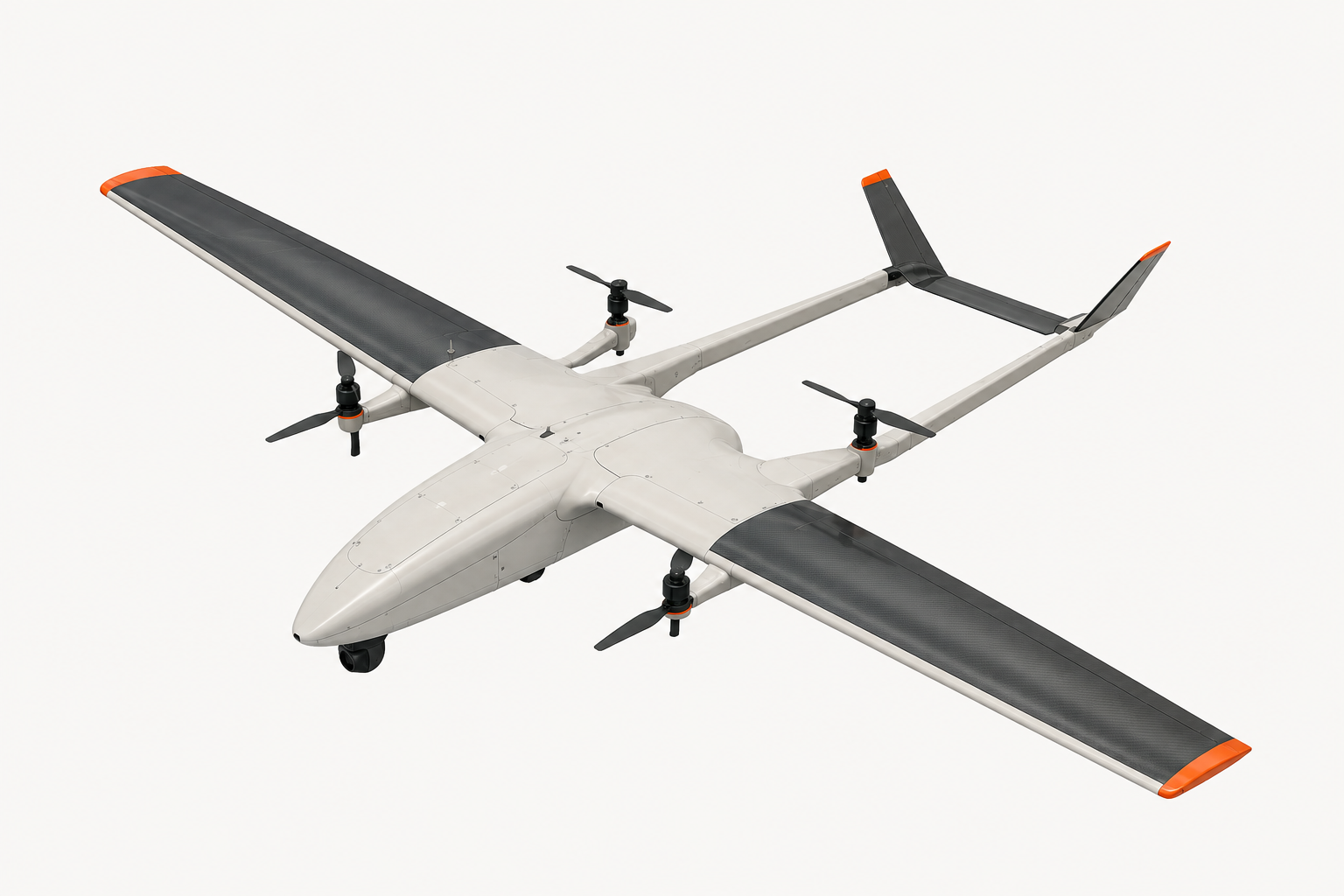

Long Range Drone
A compact 3D-printable aircraft model for recurring site inspection, supervised security patrols, and field operations where transport size and simple deployment matter.
- Digital package
- Custom 3D model set
- Mission focus
- Inspection and security
- Configuration
- Payload and printer review
- File price
- From $99
The final geometry, print profile, and verified component list are delivered after the mission, payload, printer, and operating environment are reviewed.
AIRCRAFT SPECIFICATIONS
Wingspan580 mm
AUW · all-up weight1.4 kg
Range5 km
Speed72 km/h
Print profileTo configure
Build volumeTo confirm
Payload capacityNot verified
EnduranceNot verified
Wingspan, AUW, range, and speed are illustrative website values carried over from the shop, not measured specifications or approved design targets.
Aircraft 2D view
DRAWINGTOP / SIDE / FRONT
Dimensioned aircraft drawing not yet supplied.
Electrical overview
SYSTEM CONCEPTPOWER
Battery → power distribution → motor controllers → motors
CONTROL
Navigation sensors → autopilot → motor controllers
GROUND LINK
SarumanOS ↔ telemetry link ↔ autopilot
Conceptual architecture only. Connector pinouts, voltages, and the aircraft-specific wiring plan are pending.
CFD analysis
RESULTS PENDINGNo simulation results have been supplied. Charts will show measured CFD output when a validated dataset is available.
Long Range Drone print profile
FABRICATIONThe Long Range Drone is prepared around lightweight LW-PLA, with LW-ASA and PA6-CF available for environmental or structural parts. Always validate on your exact printer and filament brand before producing flight parts.
LW-ASAExterior and service panels
Use where UV and outdoor temperature resistance are more important than minimum mass.
PA6-CFMotor mounts and load paths
Use a hardened nozzle, dry box, and a tuned structural profile.
SLICER SETUP REFERENCES
Download setup references
JSON setup references for Bambu Studio and OrcaSlicer. Review the values in a text editor; direct slicer import has not been validated.
Build essentials
3D MODELPrint settings and component selection are defined during aircraft configuration. Final hardware BOM and aircraft-specific user manual are pending.
